UI Map — every button in CodeNow

A complete tour of the IDE. Each region is documented top-to-bottom with screenshot, button list, keyboard shortcuts, and what each action calls under the hood.

Screenshots: Image placeholders below reference files in public/screenshots/. Drop a PNG with the matching filename and the image renders automatically — no markup changes needed. See the screenshots README for the full list.

The layout at a glance


┌─ Topbar ──────────────────────────────────────────────────────────┐
│ [+] [Project A] [Project B] [Project C]      [Developer|Business] │
├──────┬────────────────────────────────────┬──────────────────────┤
│      │                                    │                      │
│ Side │          Editor (Monaco)           │    Right rail        │
│ tabs │                                    │   (collapsible)      │
│ 5x   │                                    │                      │
│      ├────────────────────────────────────┴──────────────────────┤
│      │  Bottom panel: Terminal · Claude Code · Output · Debug    │
│      │                                                            │
├──────┴────────────────────────────────────────────────────────────┤
│  Status bar:  ⚠ 0  Format · Format-on-save · Autofix · Theme · Knowledge · Migrate · Share │
└────────────────────────────────────────────────────────────────────┘

1. Topbar

The strip across the top of the window. From left to right:

Element	What it does	Source
+ button	Opens native folder picker → adds a new project tab	`src/main.js` IPC `pick-folder`
Project tabs	One tab per opened project. Click to switch (or `Cmd+1`–`Cmd+9`). Right-click for close/rename/color	`switchProject()`
Developer / Business mode toggle	Switches the entire sidebar between dev tools (Files/Connections/Extensions/Git/Agents) and business tools (Catalog/Skillify/Guardrails/Workforce/Output)	`switchMode('developer'\|'business')`

Multi-project tabs are CodeNow’s core differentiator. Every project lives in one window — switch with Cmd+1/Cmd+2/etc. No separate Electron processes, no separate workspaces. State persists per project: terminal sessions, AI model choice, MCP connections.

2. Left sidebar — Developer mode

Five tabs, top to bottom. Click any tab icon to open that panel.

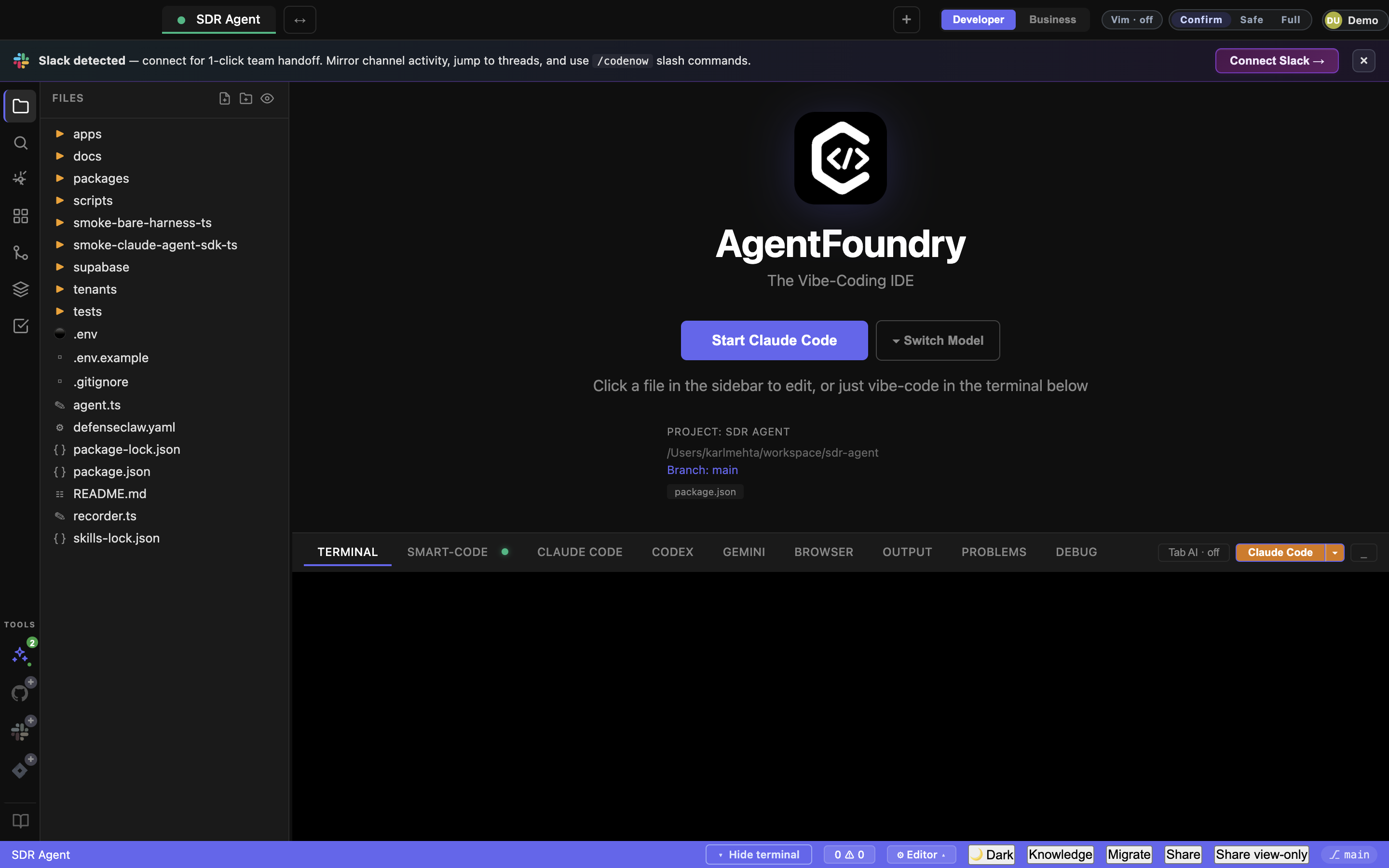

2a. Files

Element	What it does
File tree	Click a file to open in Monaco. Arrow keys navigate. Right-click for new file/folder, rename, delete.
Search bar (`Cmd+P`)	Quick-open by file name
Cross-project search (`Cmd+Shift+F`)	Search regex across all open projects

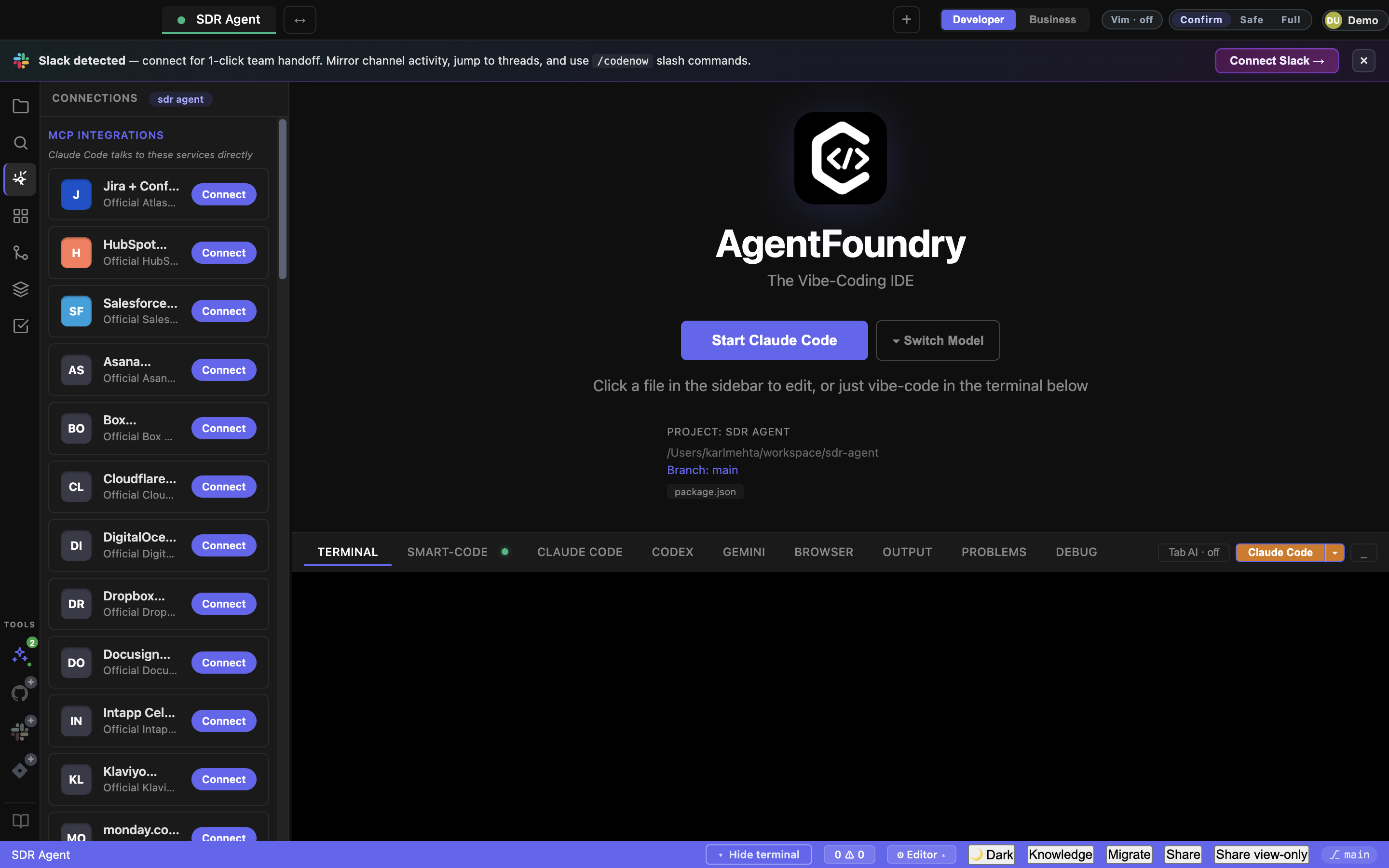

2b. Connections

Per-project MCP integrations — different projects see different connectors.

Element	What it does
Slack	OAuth connect → Slack MCP read access
GitHub	Install GitHub App → repo/issue/PR context
Jira	Atlassian OAuth → ticket context
Notion / Linear / Confluence	(When detected)
+ Add Custom MCP Server	Manual MCP config for any HTTP or stdin server
Disconnect (per row)	Removes the connection from this project

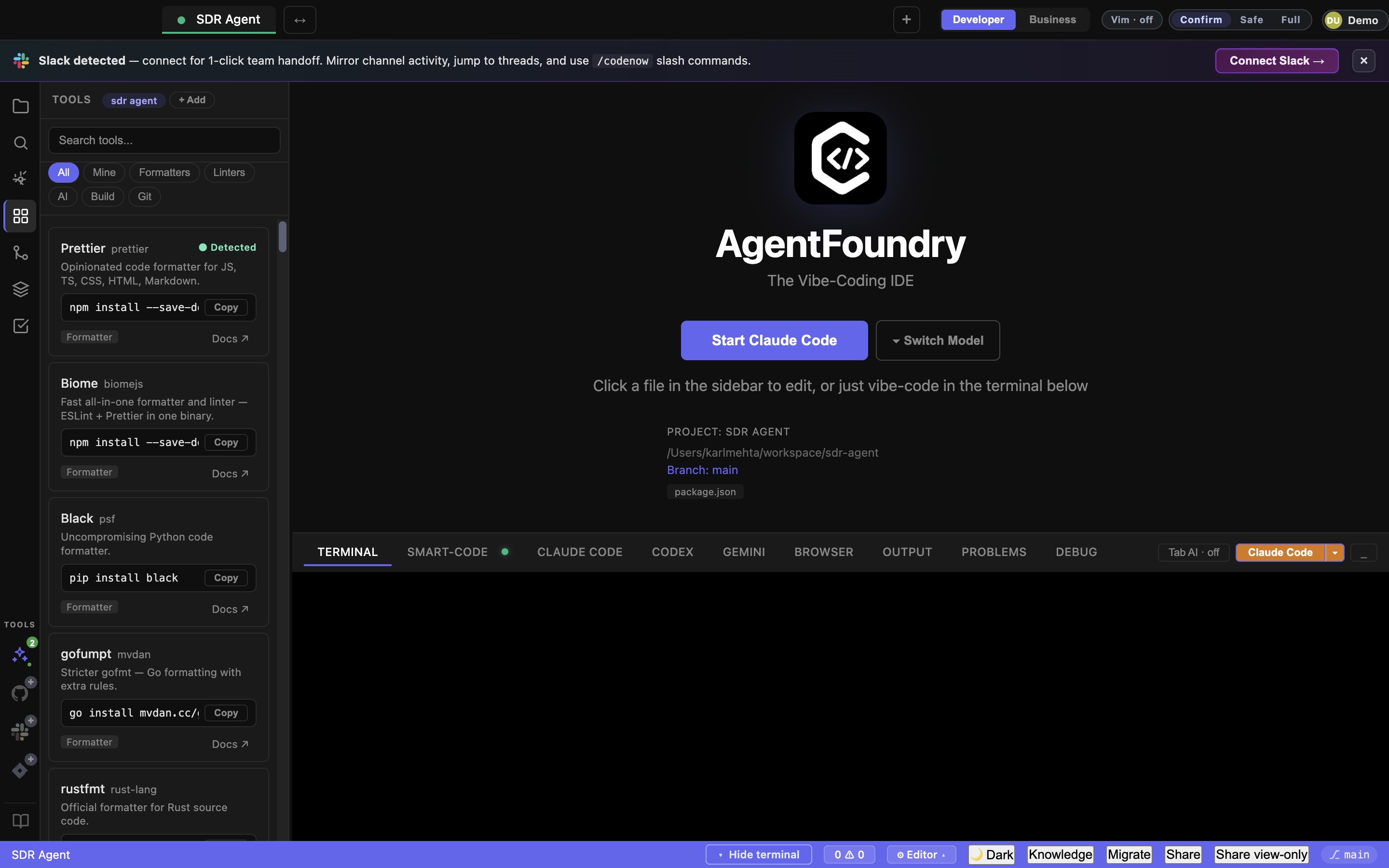

2c. Extensions

Open VSX marketplace + your own dev-tool registry.

Element	What it does
Search bar	Filter extensions by name/keyword
Category filters: All · Mine · Formatters · Linters · AI · Build · Git	Pre-canned filter buttons
+ Add (top right)	Register a custom tool: name, install command, detect-binary, category, docs URL. Saved to `~/.codenow/extensions.json`
Save / Cancel (in form)	Persist or dismiss the new tool entry
Install (per extension card)	Runs the install command in the bottom terminal

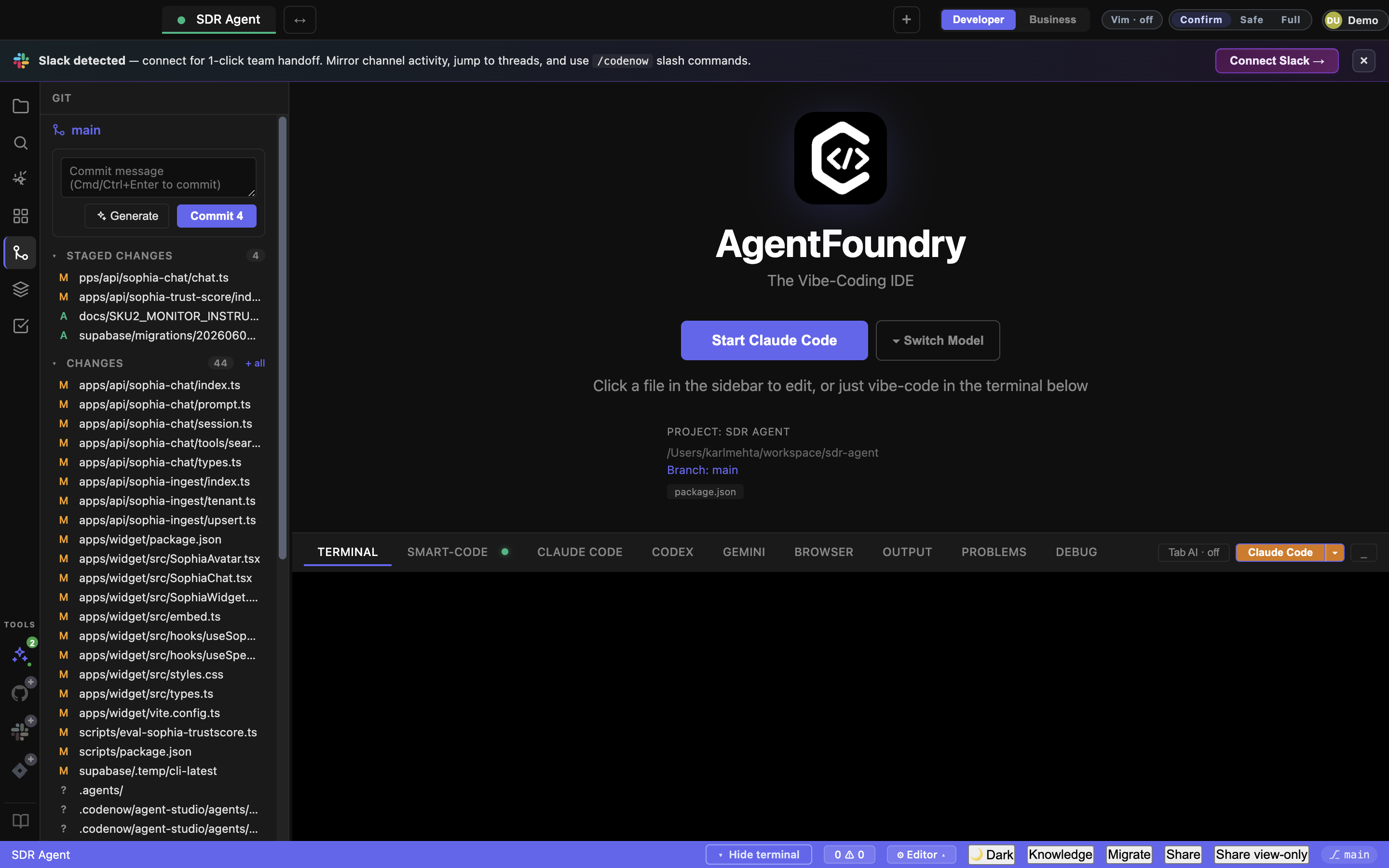

2d. Git

Element	What it does
Branch dropdown	Switch / create branch
Changes list	Modified / added / deleted files. Click to diff in Monaco
Stage all / Stage selected	Standard git stage flow
Commit message + Commit button	Creates a commit
Push / Pull	Standard git remote ops
Recent commits	Last 10 commits with `git log --oneline` style

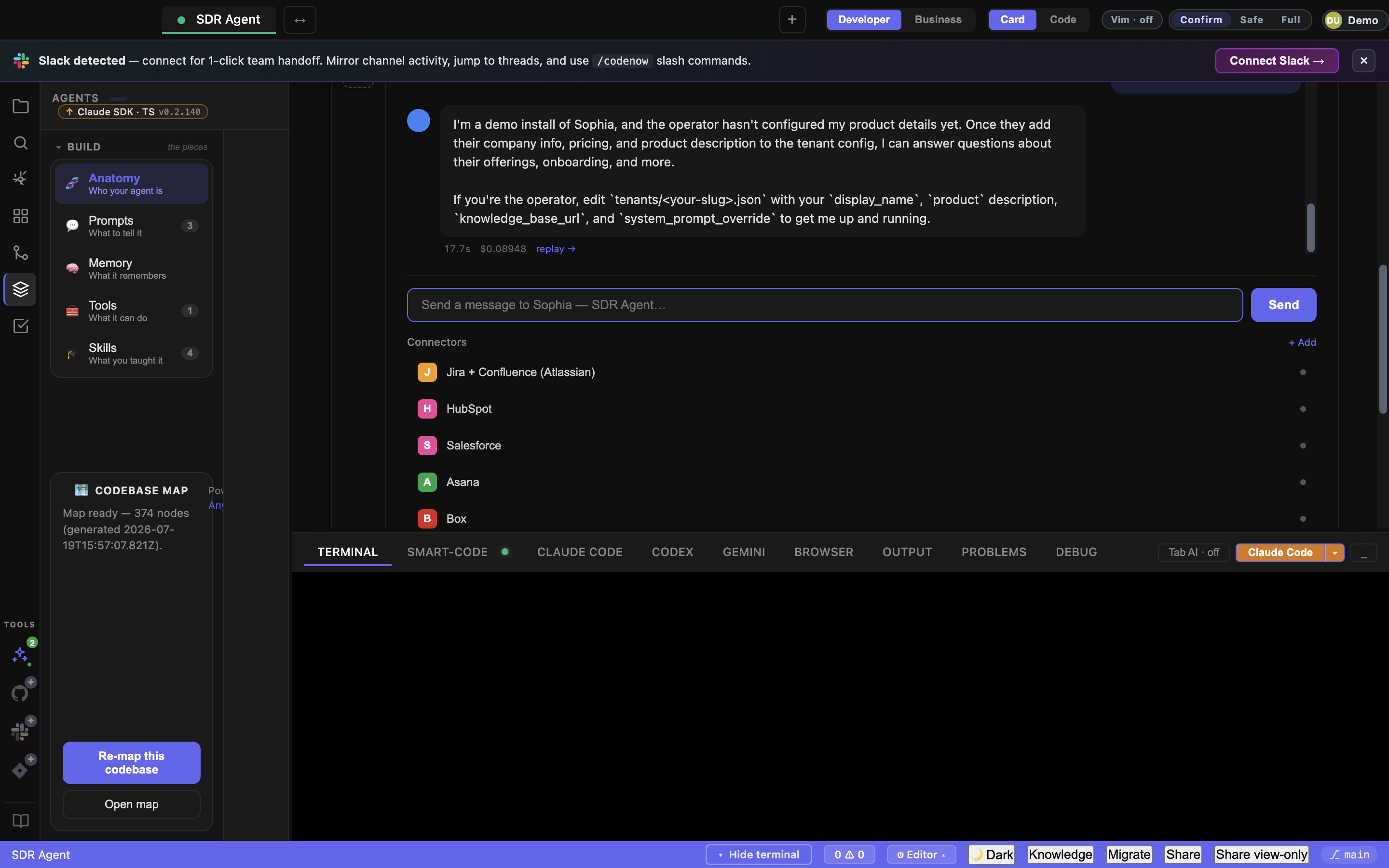

2e. Agents

The big one. Ten sub-tabs covering the agent lifecycle. See §5 Agents panel deep-dive below.

3. Left sidebar — Business mode

Toggle the topbar mode switcher to Business to swap the entire sidebar.

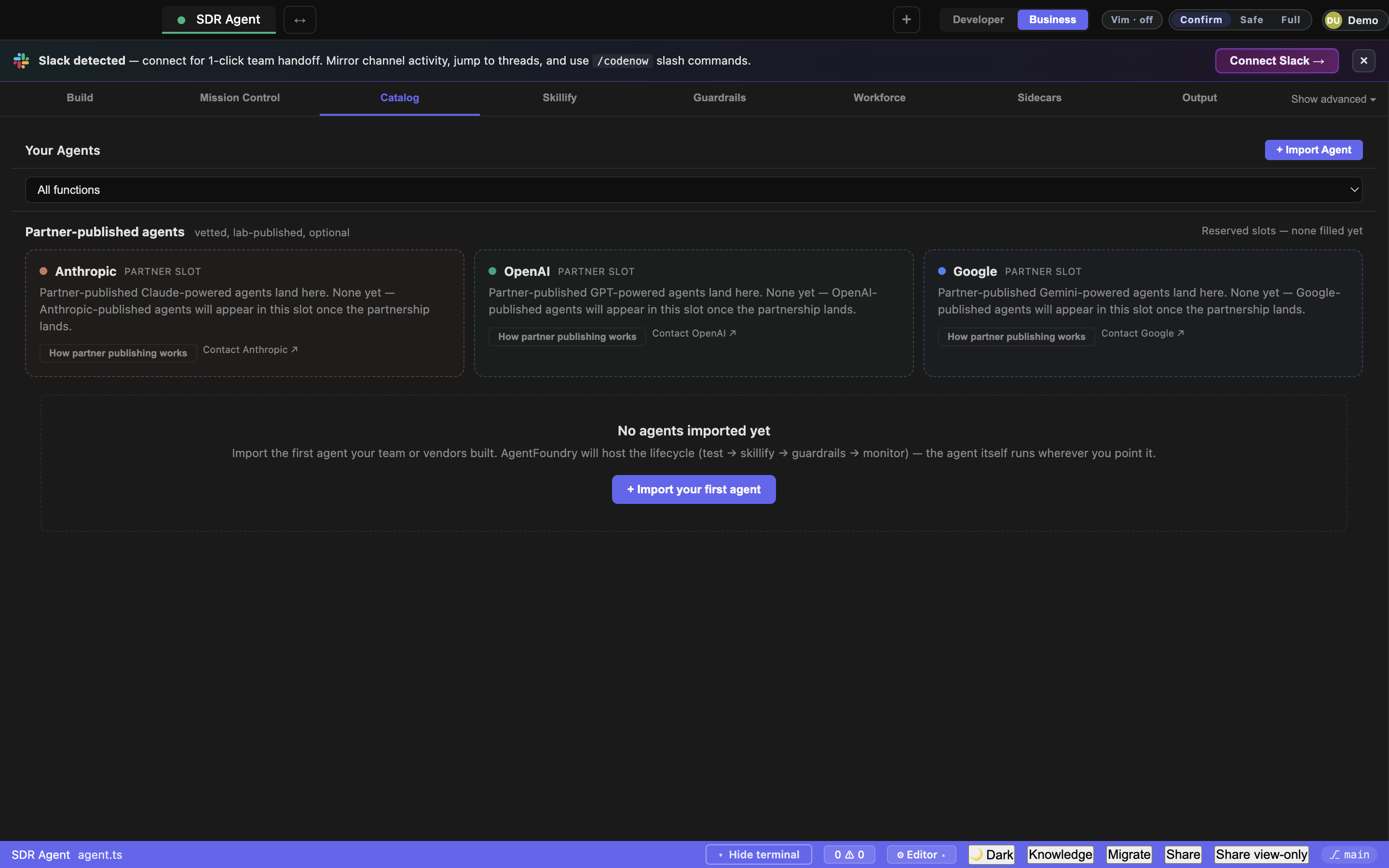

3a. Catalog

Element	What it does
+ Import Agent	Wizard: import from Agent21 marketplace, HTTP endpoint, or your dev team
Function filter (HR · Finance · Legal · Sales · Marketing · Ops · IT · CX)	Filters imported agents by business function
Agent card	Shows provenance (built-by, runs-at, data access, price). Click to skill / guardrail

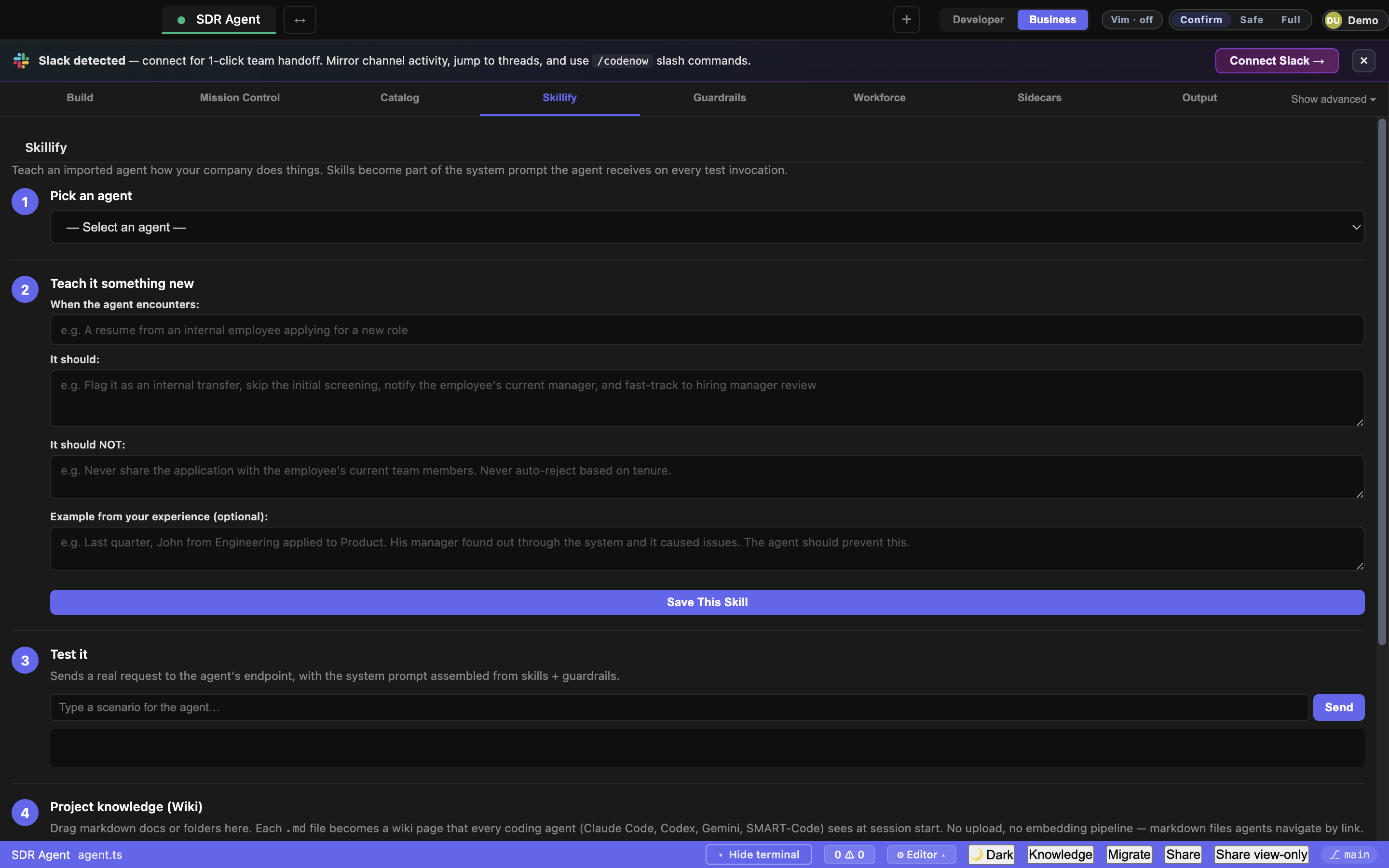

3b. Skillify

3-step training UX for non-coders.

Element	What it does
Step 1: Pick agent	Dropdown of imported agents
Step 2: Trigger description	”When this agent should activate” (e.g. “A resume from an internal employee”)
Step 3: Skill body	Free-text knowledge / examples / counter-examples
Save This Skill	Persists to `<project>/.codenow/skills.json` (project-global)
Test input + Send	Runs the agent inline with the skill applied

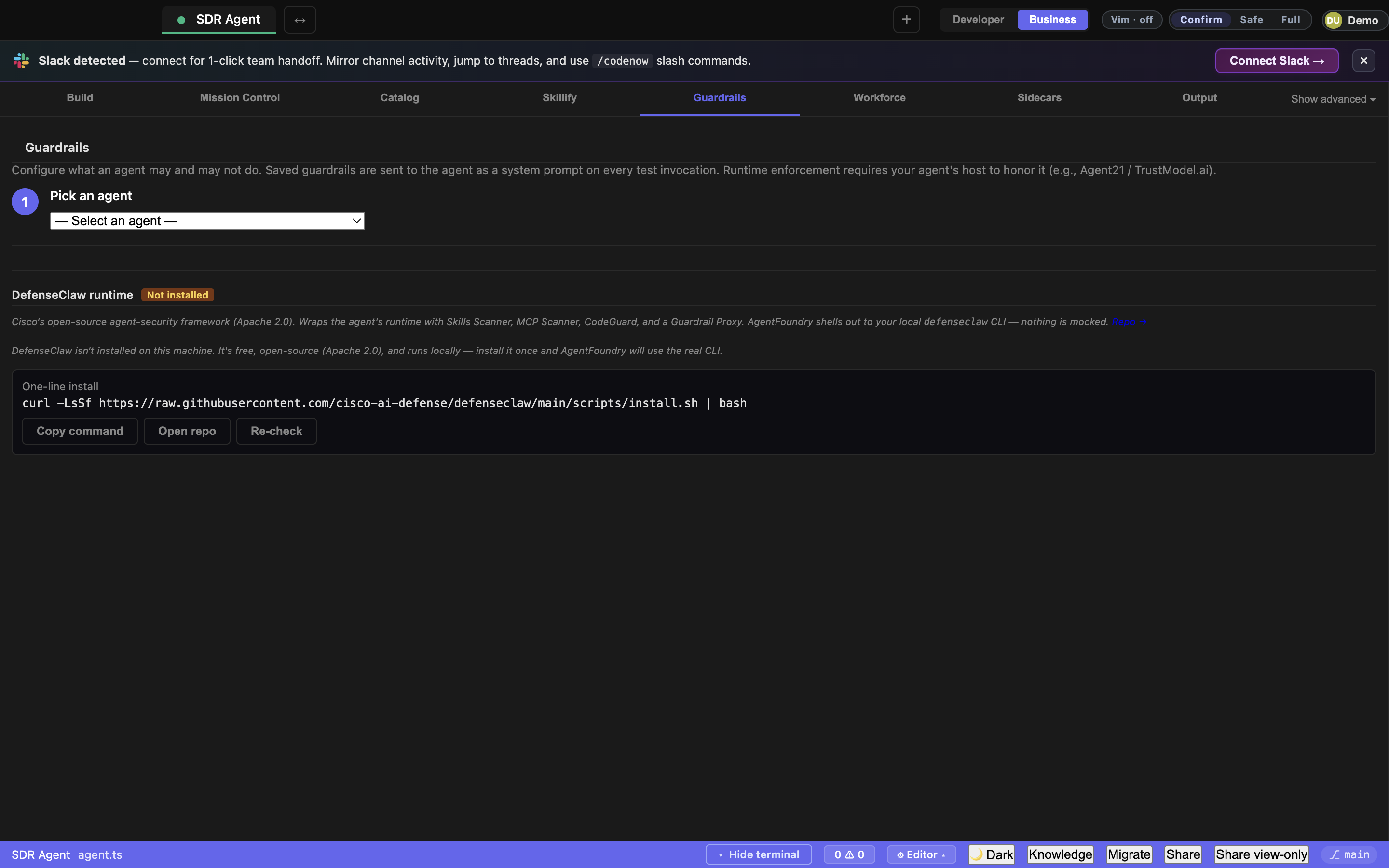

3c. Guardrails

Element	What it does
+ Add data scope	Restrict what data the agent can read
+ Add action	Allow/deny specific tool calls
Compliance toggles (PII · PHI · financial · custom)	One-click compliance presets
TrustScore threshold slider	Min score to allow the agent’s output
Save Guardrails	Persists. Sent as system prompt on every invocation

3d. Workforce

Humans + agents side-by-side. Each row shows: name, role, function, last active, owner.

3e. Output

Agent activity log with TrustScores. Real run history from ~/.codenow/exec-agent-runs.json (capped 100/agent, 500 total).

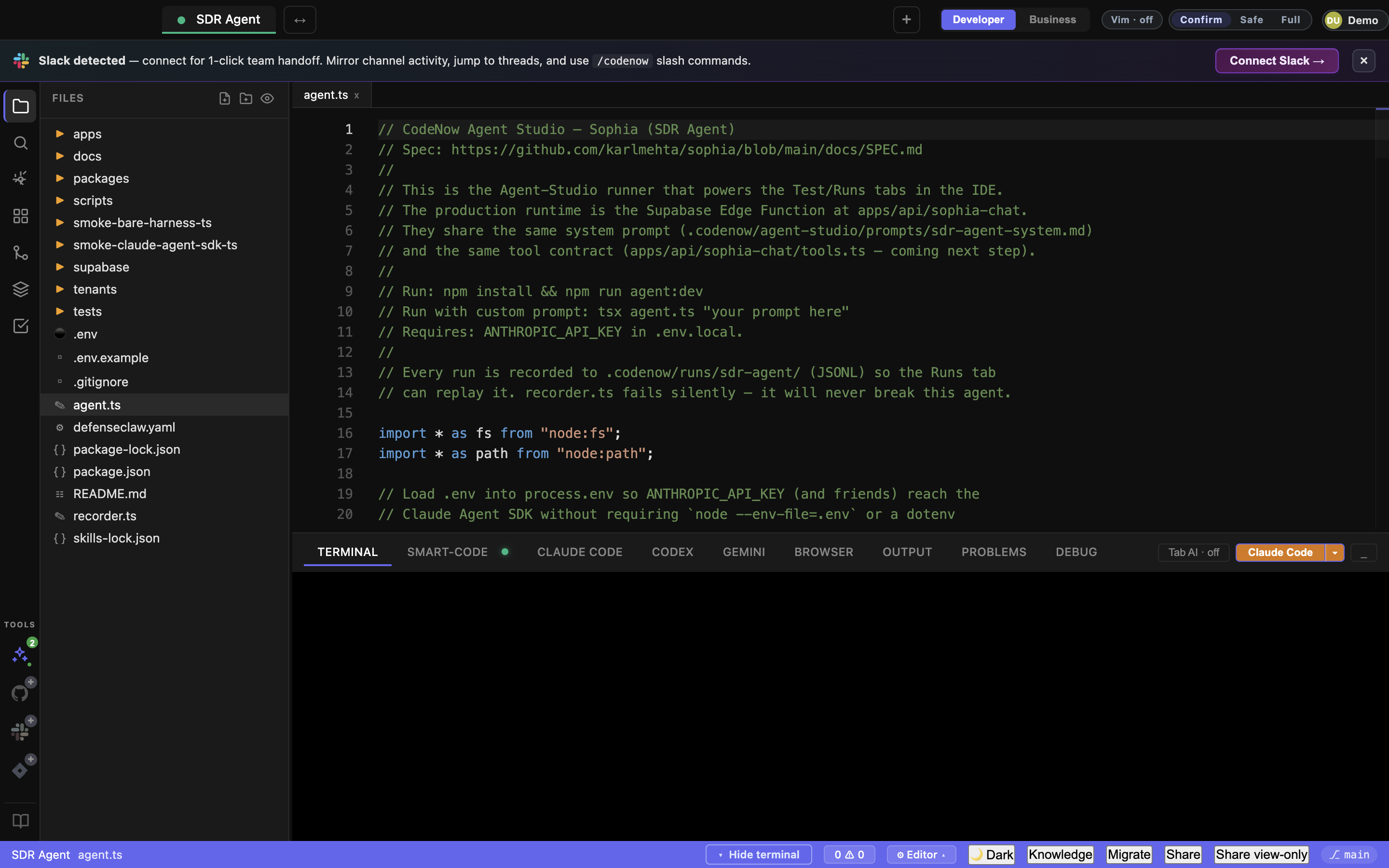

4. Editor area

Monaco Editor — the same engine VS Code uses.

Shortcut	Action
`Cmd+S`	Save
`Cmd+/`	Toggle line comment
`Cmd+D`	Add next match to multi-cursor
`Cmd+Shift+L`	Select all matches
`Cmd+P`	Quick-open file
`Cmd+Shift+P`	Command palette
`Cmd+B`	Toggle sidebar
`Cmd+J`	Toggle terminal panel
`⇧⌥F`	Format document (uses `formatActiveFile()`)

Editor tabs at the top: file name + close ×. Drag to reorder. Right-click for “Close others” / “Close to right” / “Close all”.

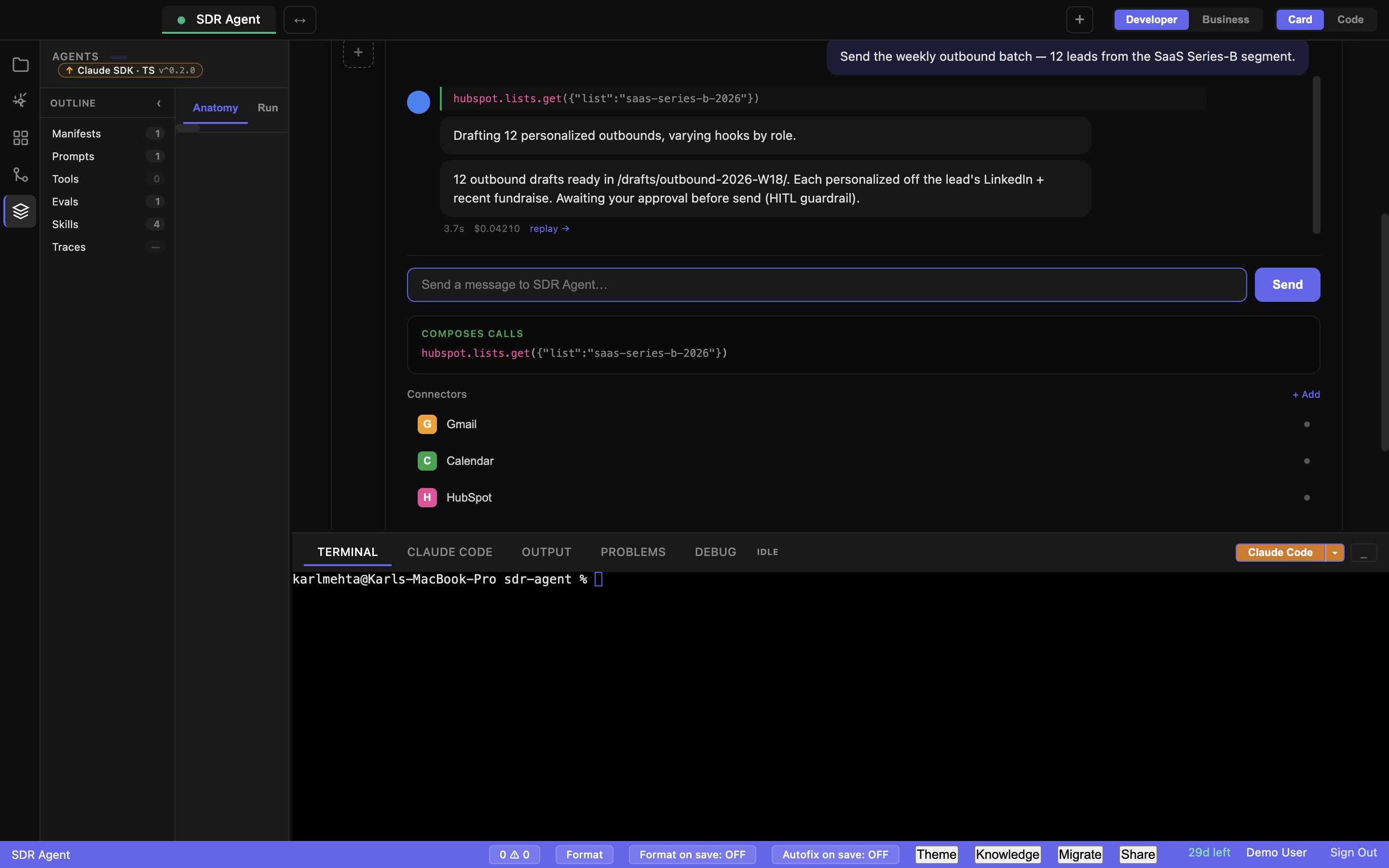

5. Agents panel deep-dive

The core of CodeNow’s agent IDE story. Ten sub-tabs in lifecycle order, grouped into Define · Run · Observe · Ship.

Progressive disclosure (v0.1.61). The left-rail tab groups declutter until you actually have an agent: the Run / Observe / Ship groups stay hidden until the project has its first agent. The group formerly labeled “Build” is now “Define.” And the four overlapping run tabs — Ask / Run / Threads / Test — collapse so Run is the single primary, with Ask / Threads / Test tucked under a “More ways to run” disclosure.

Sub-tab	Purpose
Anatomy	Visual agent card — identity, skills rail, conversation, connectors, status, drawers
Run	Multi-model studio — the single primary run tab (Ask / Threads / Test live under “More ways to run”). Defaults to CodeNow-served SMART-Code, no key needed
Test	Single-agent live test (start process, send messages, see trace)
Runs	Recorded runs list (local JSONL + Agent21 prod). Click any → Replay viewer
Trace	Studio multi-model run history with cost roll-ups
Evals	JSON eval suites with 6 assertion types + Run-all + diff vs last
Tools	Visual Tool Builder + project tool scan
Prompts	Versioned system prompts with `{{variables}}`
Skills	Per-project skill library
Publish	Agent21 OAuth (one-click, no client secret) + pre-flight + 1-click monetize + marketplace browse

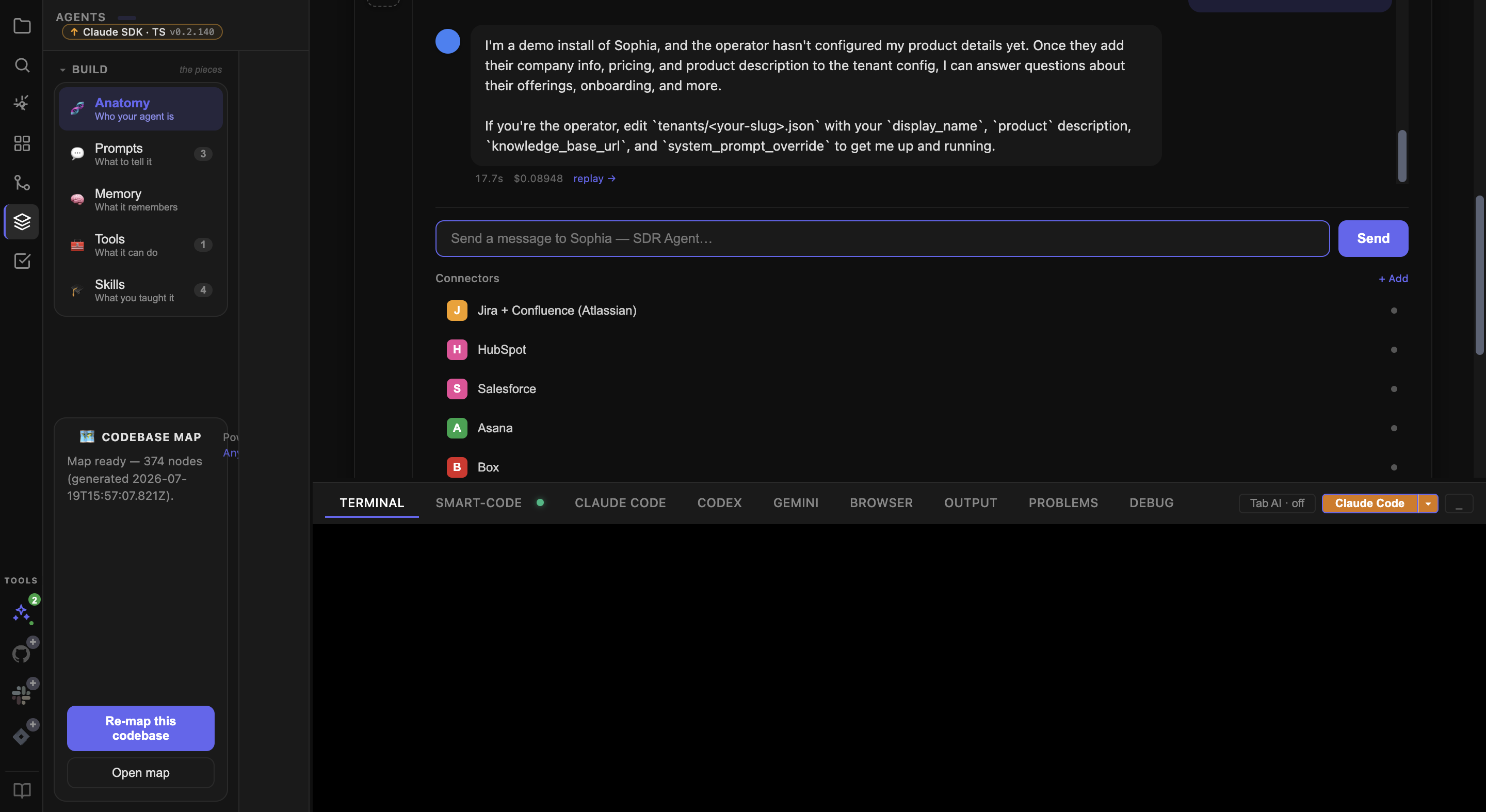

Anatomy sub-tab

Models the Anthropic 2026 Agent mockup. Auto-promoted into the main editor area when there’s a single agent (toggle Card / Code in the topbar to swap back to file editing).

Region	What it does
Lifecycle bar (top, full-width)	Build → Test → Skillify → Guardrails → Publish → Deploy. Each step shows ✓ when its precondition is met; click any step to jump to its sub-tab
Identity tile (top-left)	Color-hashed icon + name + workspace breadcrumb + model badge (click to switch model). Multi-agent dropdown when project has >1 manifest
Subagents pill (top-right)	Click → drawer listing every tool with usage stats
Skills rail (left vertical)	Color tiles per skill. Click → edit modal (name + description + prompt). `+` tile → New skill modal. Drop target for skill drags from the Skills tab
Conversation pane (center)	Chat thread of last 10 recorder runs. Type → spawn agent → response appears with cost/duration/replay link
Composes calls panel	Tool_use events from latest run as code
Connectors strip	Per-project MCPs. Click → Connections sidebar
Status bar (bottom)	Pulsing live dot during runs · “Ready · N runs” otherwise · connector count · orange `+ Tool` button → Visual Tool Builder · `Publish & Monetize ↗` → Agent21 wizard
Tasks drawer (click status pill)	Running runs + recent runs (clickable to Replay)

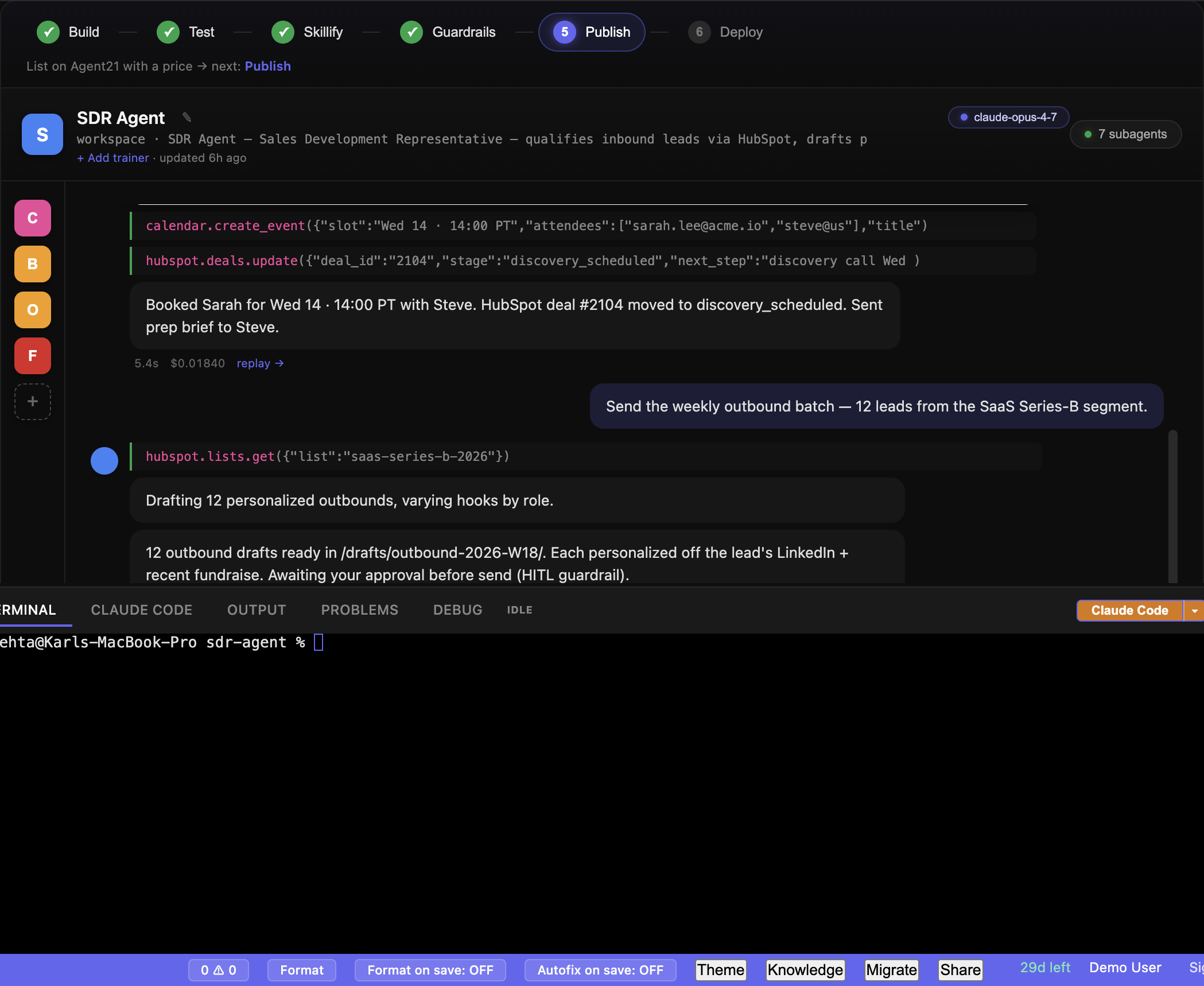

Anatomy element close-ups

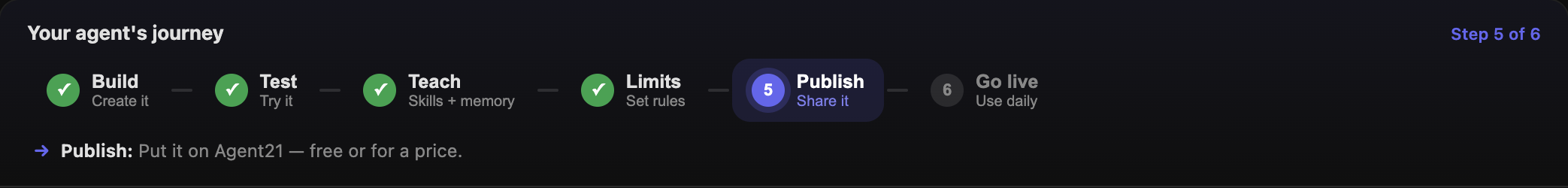

Lifecycle bar — Build · Test · Skillify · Guardrails · Publish · Deploy. Each step is a clickable shortcut.

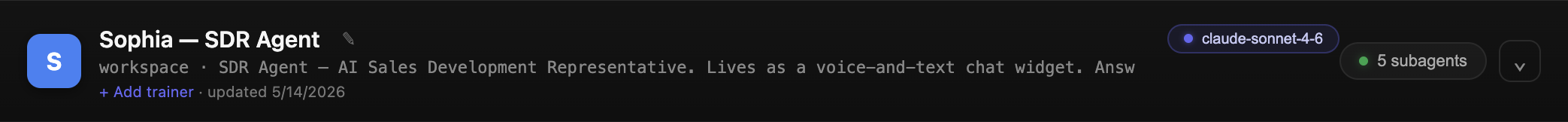

Identity tile — agent name (click to rename), workspace breadcrumb, “trained by” line, model badge (click to switch), subagents counter.

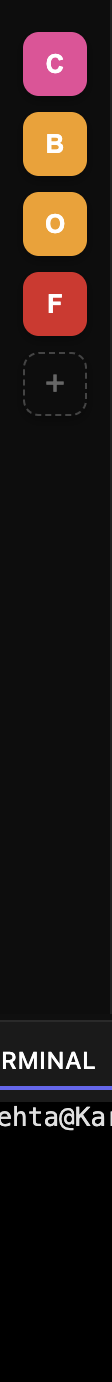

Skills rail — one rounded-square tile per skill (color-hashed by name). Click a tile to edit (name / description / prompt template). Click + to create a new skill.

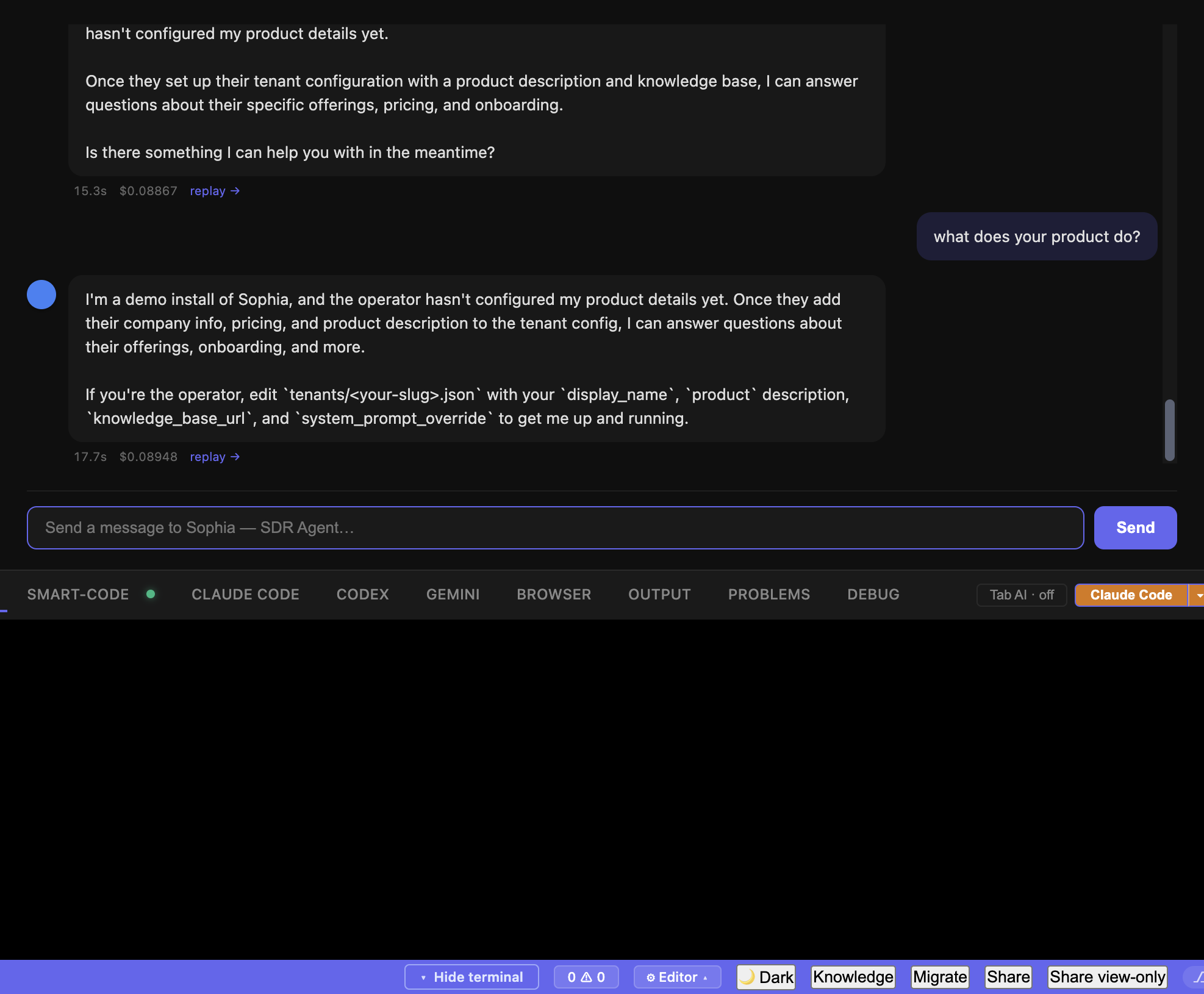

Conversation pane — last ten recorder runs as a chat thread. Each turn shows the user input, the assistant text, inline tool calls (hubspot.lists.get(...)), and a replay → link to open the full event timeline.

Run sub-tab (multi-model studio)

Defaults to CodeNow-served SMART-Code — Run and Test work with no API key (served inference, metered against a free pool). Ask / Threads / Test are collapsed under the “More ways to run” disclosure. Adding your own keys is optional and only needed for side-by-side model comparison.

Element	What it does
System prompt textarea	Optional system prompt prepended to every model call
User prompt textarea	The prompt fanned out to all selected models
Model picker (multi-select)	Toggle SMART-Code (served, keyless) / Claude Opus / GPT-5 / Gemini / etc.
Manage keys link	Opens Connections tab to add optional BYOK keys for model comparison
Run button	Fans out to every selected model in parallel
Snapshot as eval button	Saves the most recent successful run as a new eval case

Test sub-tab

Test (same layout)

Element	What it does
Framework dropdown	Claude Agent SDK · MCP · LangChain · CrewAI · OpenAI · ADK · n8n · HTTP · Custom
Mode dropdown	stdin (CLI) or HTTP (POST)
Start command input	e.g. `npx tsx src/agent.ts`
HTTP URL input (when mode=http)	e.g. `http://localhost:5678/webhook/agent`
Start Agent (`⌘R`)	Spawns the process via `startAgentProcess` IPC; switches to chat focus
Stop	Kills the process
TrustModel API Key input	Saves to env; activates TrustModel guardrail enforcement on every test
Generate API Key / Open Control Plane links	Open trustmodel.ai in browser
Chat input + Send	Multi-turn conversation with the running agent
Skillify button	Save the last exchange as a skill
Trace sidebar	Real-time tool calls + LLM messages

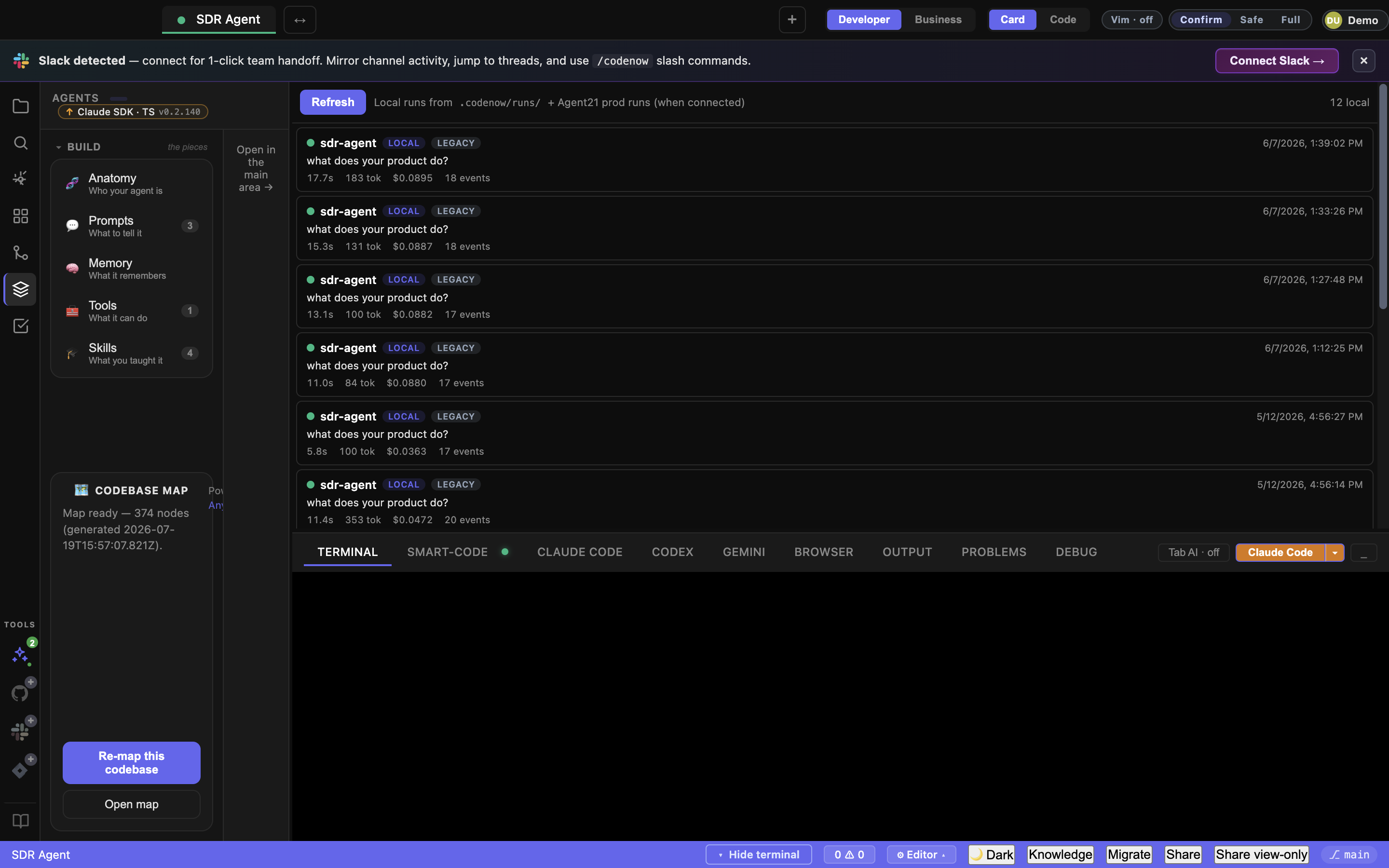

Runs sub-tab

Element	What it does
Refresh	Re-reads `.codenow/runs/` + Agent21 prod runs
Run row	Status dot (success/error/running) · slug · source badge (local/prod) · input preview · duration · tokens · cost. Click → Replay viewer

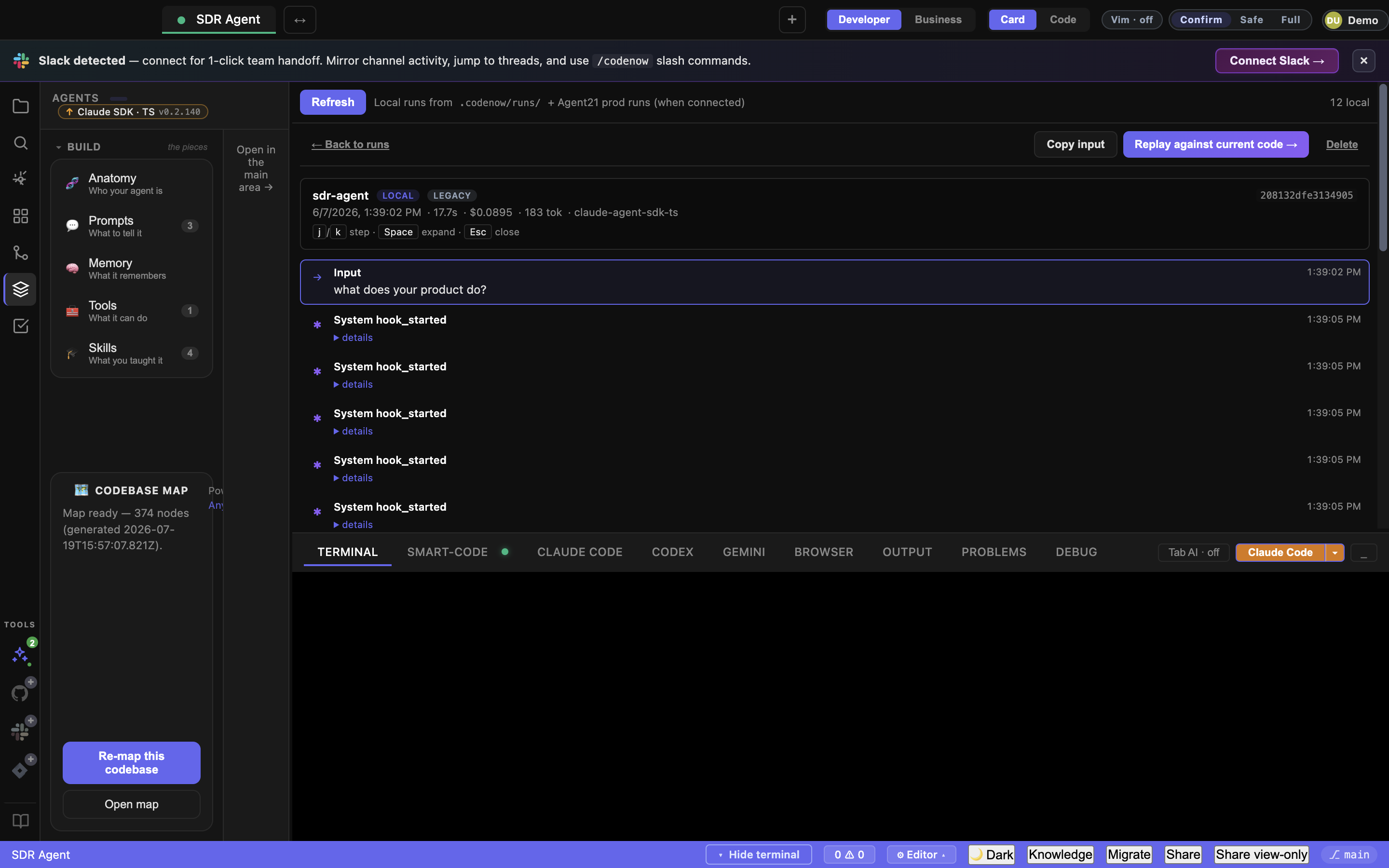

Replay viewer (opens when you click a run)

Control	Action
← Back to runs	Return to the list
Copy input	Copy the run’s input to clipboard
Fork to current code →	Re-runs original input through current local agent (only for local runs)
Delete	Delete the JSONL file
j / ↓	Step forward
k / ↑	Step back
Space	Toggle expand/collapse the current step’s `<details>`
Esc	Close back to list

Fork-to-current-code diff

Region	What it shows
Banner (top)	✓ Green “Output matches” or ⚠ amber “Output differs” + cost/duration/step deltas
Original column (left)	Past run’s timeline
Fork column (right)	New run’s timeline (from spawning current code)
stderr (collapsible)	If the spawn produced stderr, it’s preserved

Evals sub-tab

Element	What it does
Refresh	Re-scan `.codenow/agent-studio/evals/`
Run all	Fan every case across every selected model
Create seed file	Drop a starter eval JSON
Eval row	Click to expand cases. Each cell shows pass/fail/skipped. Click → see actual output

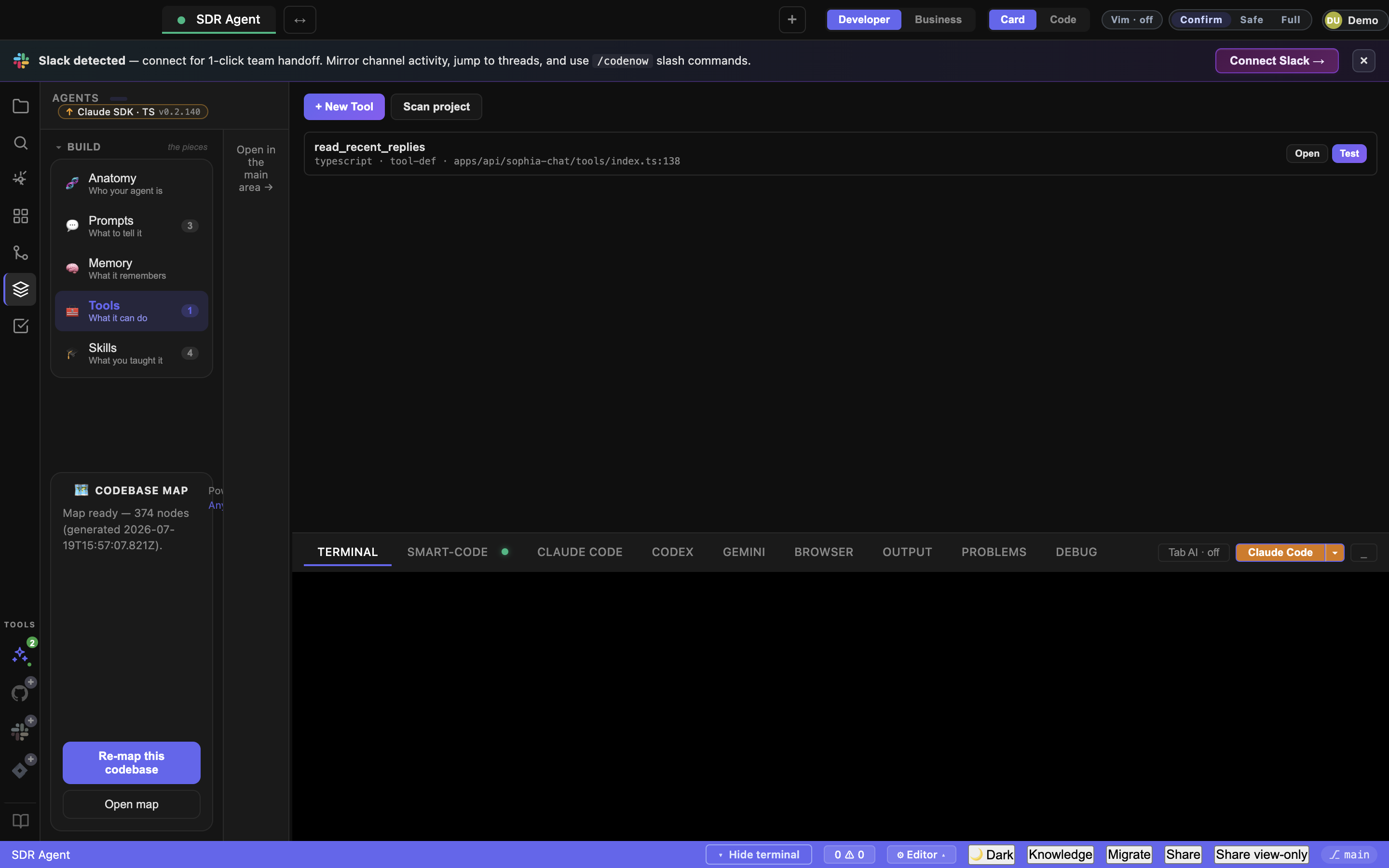

Tools sub-tab

Element	What it does

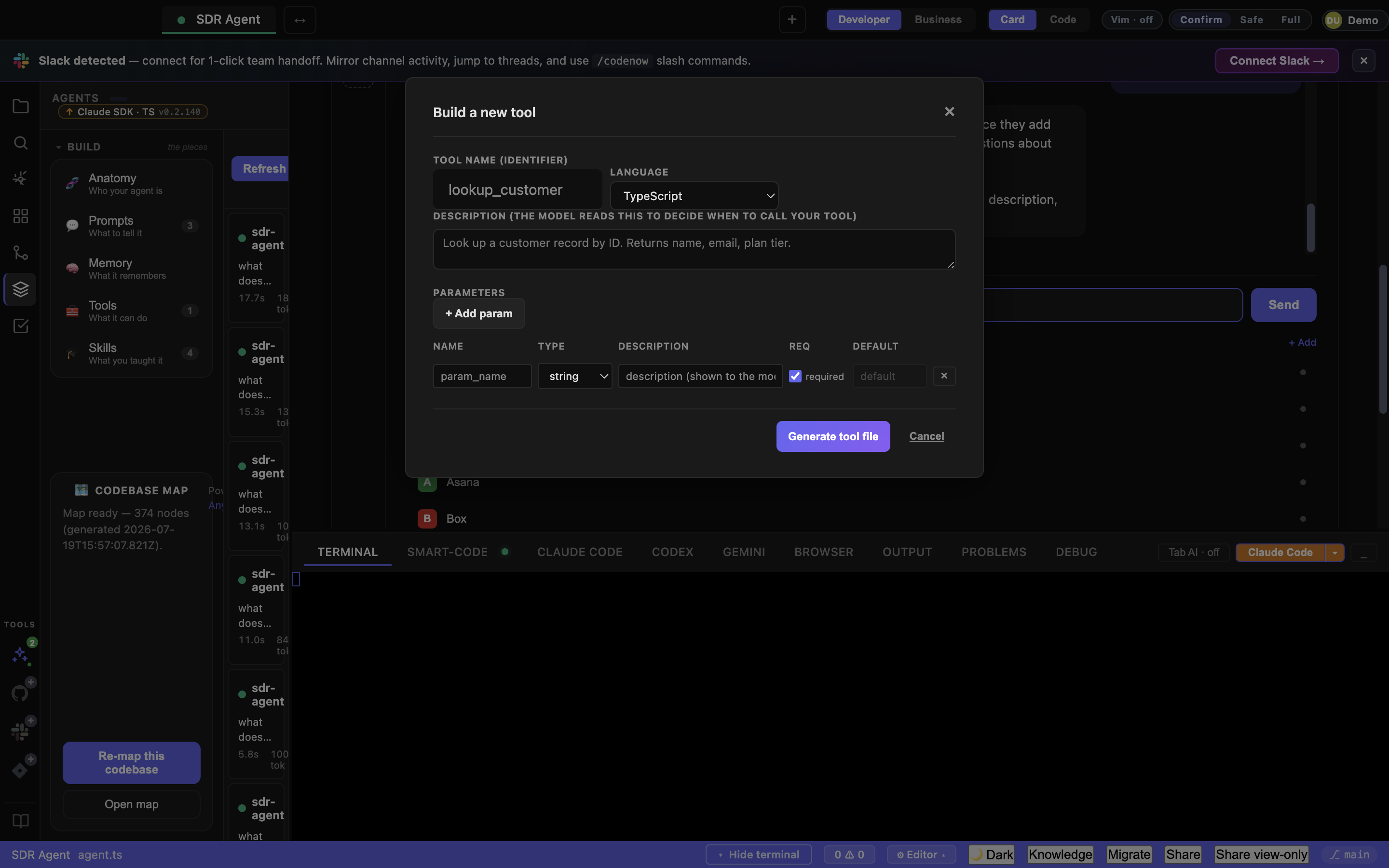

+ New Tool	Opens Visual Tool Builder modal
Scan project	Finds Python `@tool` / `@function_tool` decorators + TS/JS objects with `{name, inputSchema}`
Tool row	name · lang · file:line · Open (in Monaco) · Test (modal with JSON args)

Each row is draggable — drag onto the Anatomy card to add to manifest.tools.

Prompts sub-tab

Element	What it does
Refresh	Re-scan `.codenow/agent-studio/prompts/`
+ New prompt	Create a new versioned prompt MD file
Prompt row	name · description · last modified. Click → opens in Monaco

Skills sub-tab

Element	What it does
+ New Skill	Modal: name, description, prompt body, tags, expected behavior
Skill row	Click to edit. Drag onto Anatomy card → adds to `manifest.primarySkills`

Publish sub-tab

Element	What it does
Refresh	Re-load manifests from disk
+ Build new	Opens the Foundry — Describe → Build by default, or the Advanced: build step by step scaffold wizard (kit picker → fields → scaffold)
+ Import	Manifest editor for advanced cases
Browse marketplace	Opens Agent21 catalog inline with Subscribe + Fork actions
Connect Agent21	One-click browser OAuth — no client secret / env var (credential lives on CodeNow’s backend)
OAuth status banner	Shows connection state
Manifest row	Shows pre-flight status. Click Publish ↗ for 6-point checklist + 1-click monetize

6. Bottom panel

Five tabs at the top.

Tab	What it does
Terminal	Real shell via node-pty. Drag files from Finder → paste path
Claude Code	xterm running `claude` CLI in this project (or run any other AI model)
Output	Build / lint / format output
Problems	Static analysis errors with click-to-jump
Debug	DAP debug session

Element	What it does
Start AI (zap icon)	Spawn `claude` (or your selected AI CLI) in the active terminal
Switch Model (▾)	Dropdown: Claude Code · OpenAI Codex · Gemini · Aider · Copilot
Toggle terminal (`_`)	Collapse/expand the bottom panel

Debug panel buttons

Button	Action
▶ Debug	Launch debug for the active file (Node, Python, etc.)
⏵	Continue (`F5`)
⤼	Step over (`F10`)
⤓	Step into (`F11`)
⤒	Step out (`⇧F11`)
■	Stop

7. Status bar (bottom of window)

Element	What it does
⚠ 0 0	Problem count — error count + warning count. Click to jump to next problem
Format	Format the active file (`⇧⌥F`)
Format on save: OFF/ON	Toggle save-time formatting
Autofix on save: OFF/ON	Toggle save-time ESLint / Ruff / Biome `--fix`
Theme	Open theme picker (built-in dark + import any VS Code theme JSON)

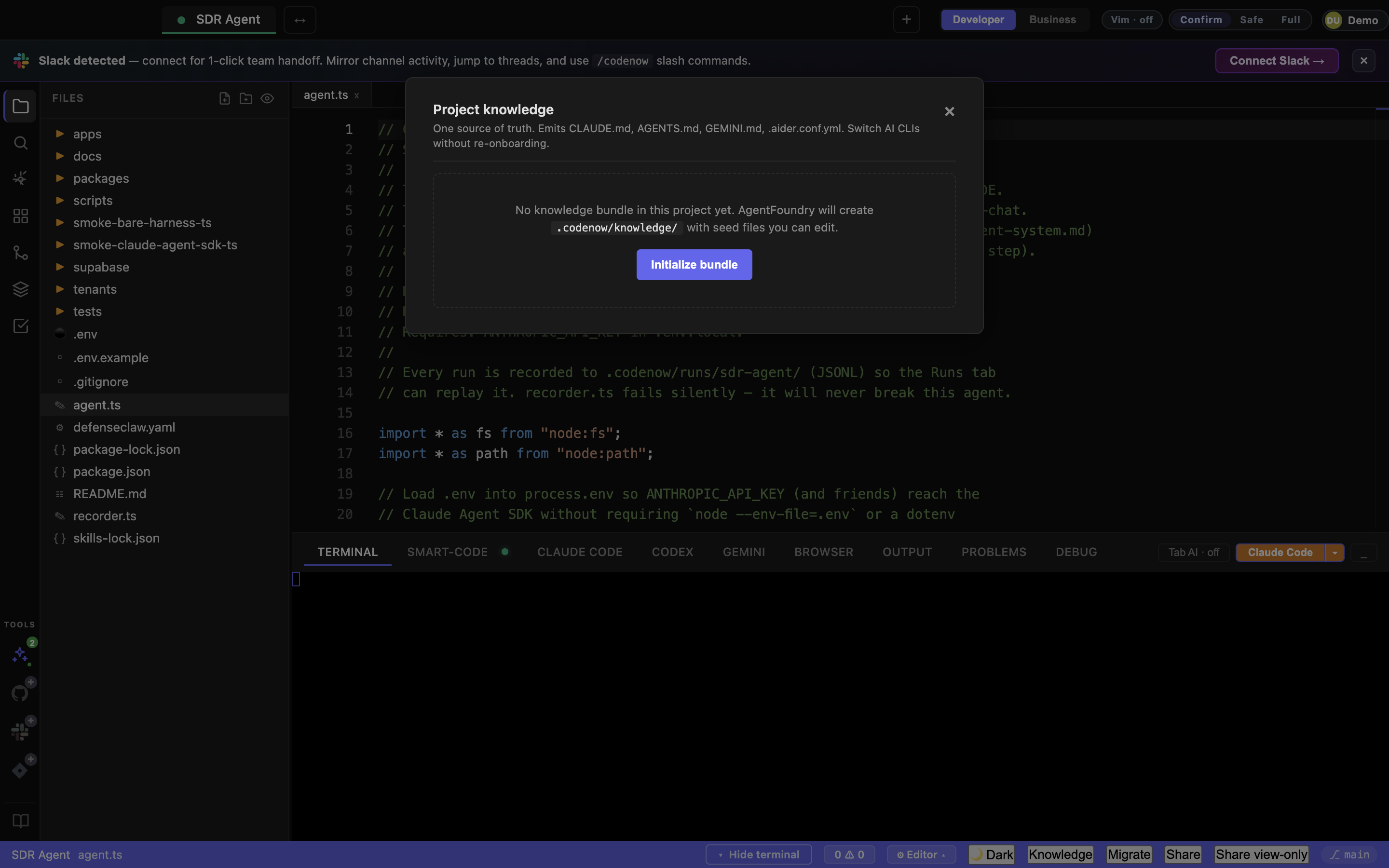

Knowledge	Open the Knowledge Bundle modal — single source for `CLAUDE.md` / `AGENTS.md` / `GEMINI.md` / `.aider.conf.yml`
Migrate	Re-run the Migration Assistant — re-scan for tools/credentials from VS Code, Cursor, Claude Code, gh, vercel, etc.
Share	Open the Collaboration modal — invite a domain expert / business user to this project
Sign Out	Supabase sign out

8. Modals

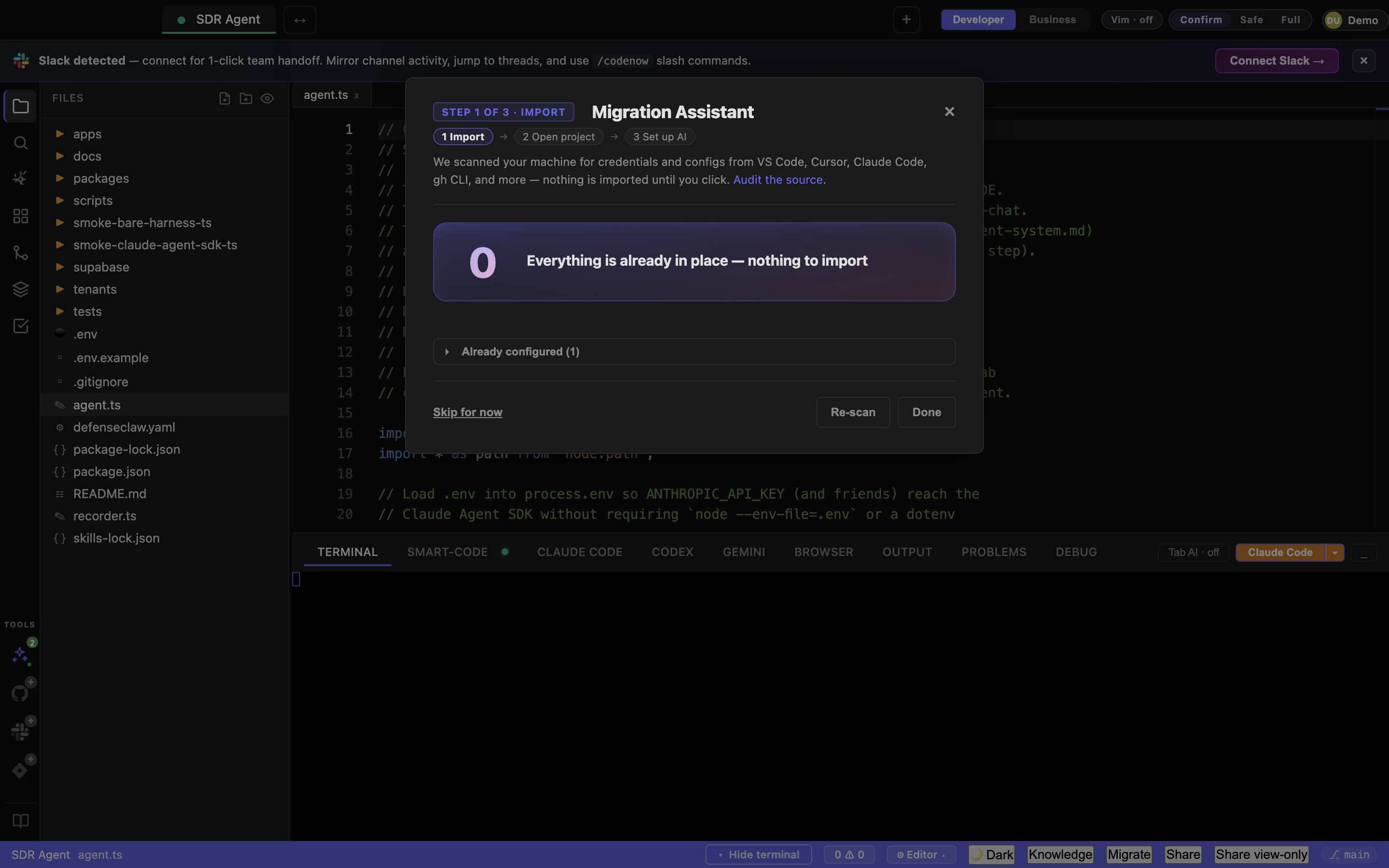

Opens automatically on first launch (and on demand from Migrate in the status bar).

Element	What it does
Source row (per detected tool)	Checkbox + tool icon + what gets imported
Import all auto-detected	Single-click sweep
Re-scan	Look again for newly-installed tools
Done	Close

Sources detected: VS Code · Cursor · Claude Code · gh · vercel · gcloud · Aider · Anthropic / OpenAI / Google env vars.

Element	What it does
Initialize bundle	Creates the canonical project-knowledge file
Sync now	Regenerates `CLAUDE.md` / `AGENTS.md` / `GEMINI.md` / `.aider.conf.yml` from the canonical source
Close	Done

Invite a collaborator (developer or business user) to the project. Files stay in git, activity stream lives in Supabase.

Field	Purpose
Name	Tool symbol (snake_case). Becomes the function name
Description	What the tool does — model uses this to decide when to call
+ Add param	Param name + type (string/number/boolean) + description
Generate	Writes `tools/<name>.ts` (or `.py`) with `tool()` + `createSdkMcpServer()` exports

Describe → Build (default entry point)

The primary way to create an agent. A single “What should your agent do?” box + one Build button — type a plain-language description, click, and CodeNow drafts the agent, auto-picks a “Recommended for you” kit from your detected keys, scaffolds it, and lands you on a running agent. No kit picker, no jargon up front. The 9-step guided builder (kit choice, sub-agents, deploy targets, harness explainers) sits behind an “Advanced: build step by step” disclosure.

The opt-in step-by-step builder — reach it via Advanced: build step by step or + Build new in the Publish tab.

Step	What it does
Step 1: Pick a kit	Card grid: Claude Agent SDK (TS/Py) · Cursor SDK · Microsoft Agent Framework · Google ADK · empty · coming-soon stubs
Step 2: Details	Name + slug + description
Step 3: Result	List of files written; Read START_HERE.md first + Open agent.ts + Edit manifest buttons

Hello Agent CTA

Lives on the Anatomy card when no manifest exists in the project. The “What should your agent do?” box + Build button is the default; Advanced: build step by step underneath opens the guided kit picker.

Settings modal (`Cmd+,`)

Section	What it controls
Editor	Font size, family, tab size, word wrap
AI	Default model, API keys
Theme	Built-in or imported VS Code themes
Format	Format-on-save, autofix-on-save
Privacy	Telemetry opt-out

9. Welcome / first-launch

Shown when no project is open.

Element	What it does
Open Project Folder (primary CTA)	Native folder picker → adds the project tab
Start Claude Code	Spawns the AI agent in the new project
▾ Switch Model	Pick a different AI model before starting

10. Keyboard shortcut master list

See the dedicated keyboard shortcuts page for the full list. Highlights:

Shortcut	Action
`Cmd+1`–`Cmd+9`	Switch project tab
`Cmd+P`	Quick file open
`Cmd+Shift+F`	Cross-project search
`Cmd+\\`	Toggle sidebar
Ctrl+`	Toggle terminal
`Cmd+R`	Start agent → switch to Test → focus chat (Agents panel)
`Esc`	Close Replay viewer
`j` / `k` / `Space`	Step / step / expand in Replay
`Cmd+Q`	Quit (full restart needed for `main.js`/`preload.js` changes)
`Cmd+R` (window-level)	Reload renderer (renderer-only changes after a git pull)

Source

This page was generated from src/renderer/index.html in the CodeNow IDE source . 120+ clickable elements documented. PRs welcome — when CodeNow ships a new button, file an issue or open a PR against the wiki repo .

Edit this page →
